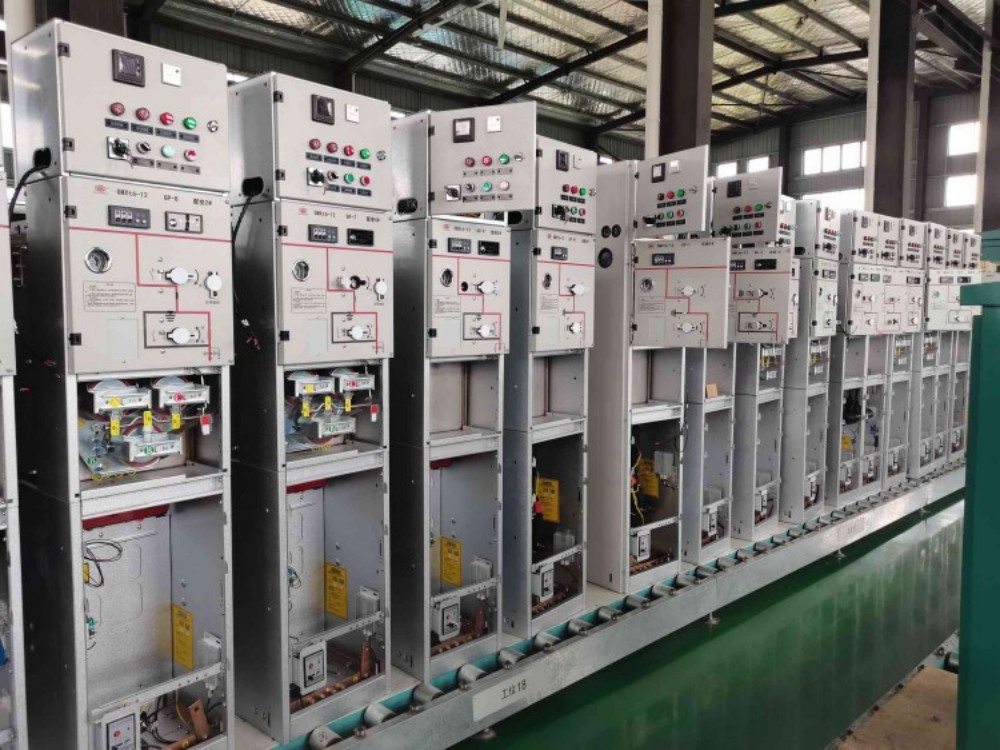

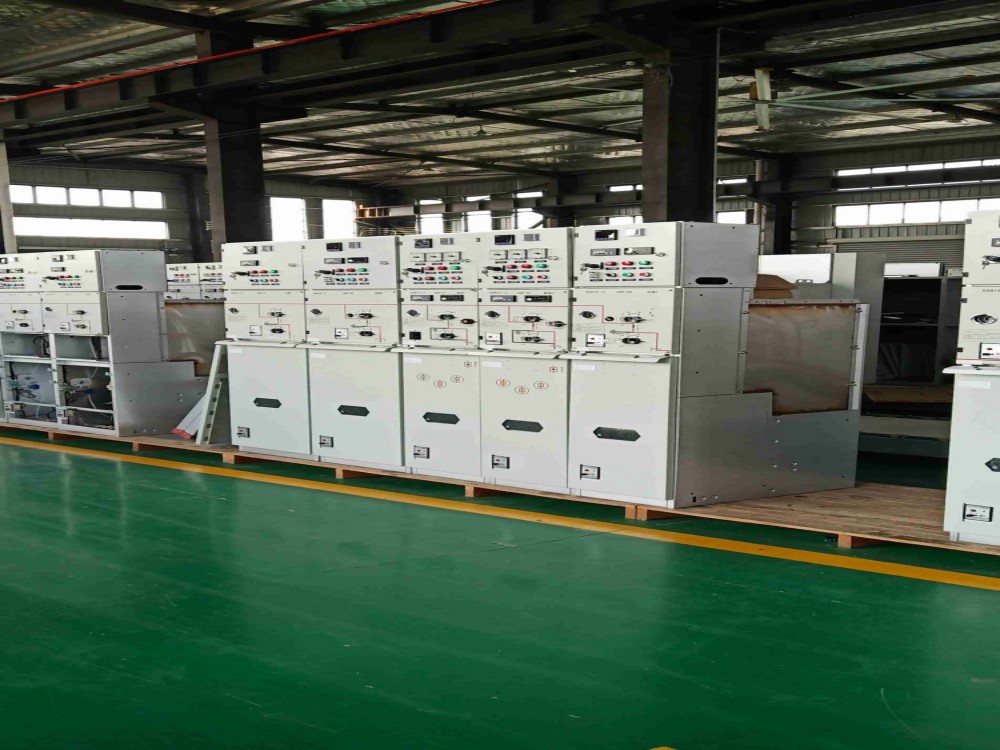

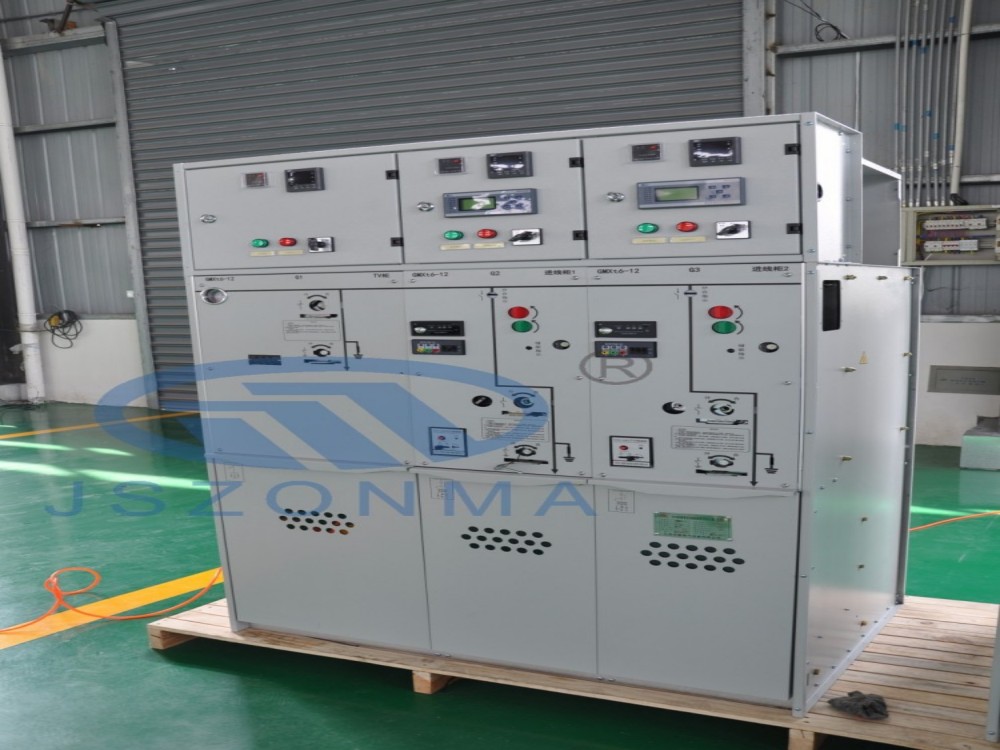

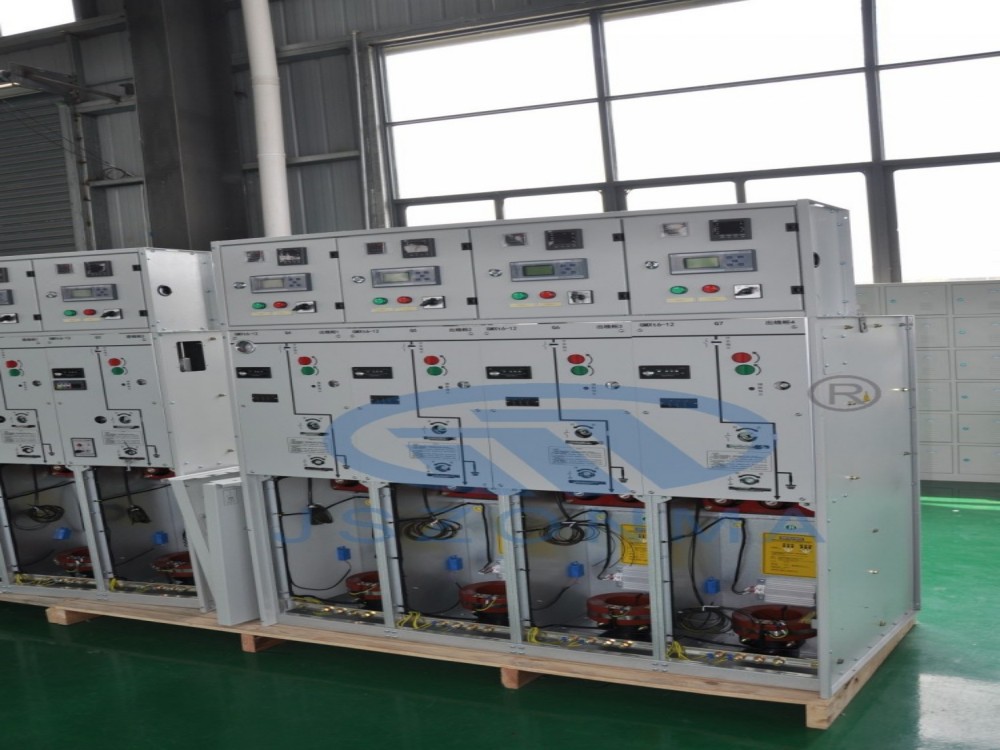

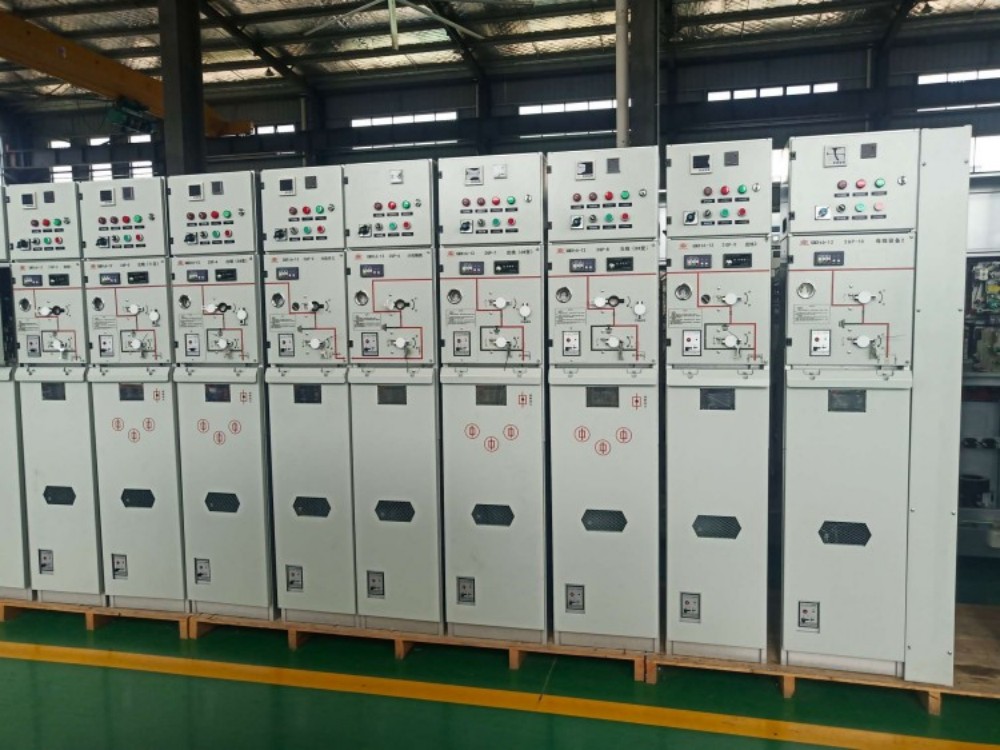

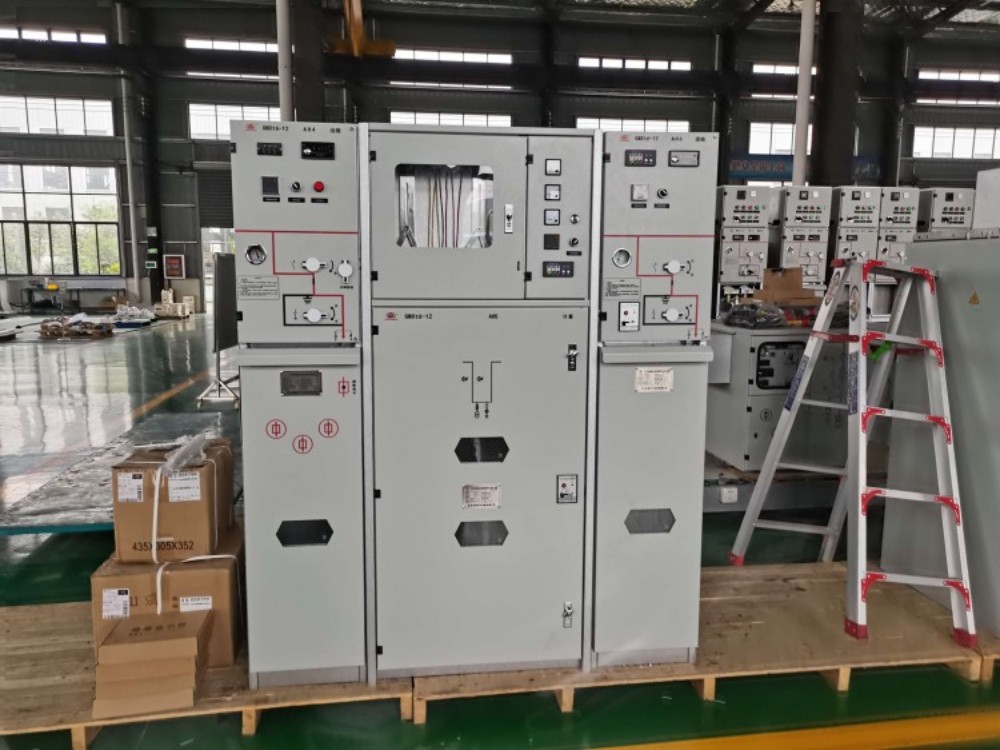

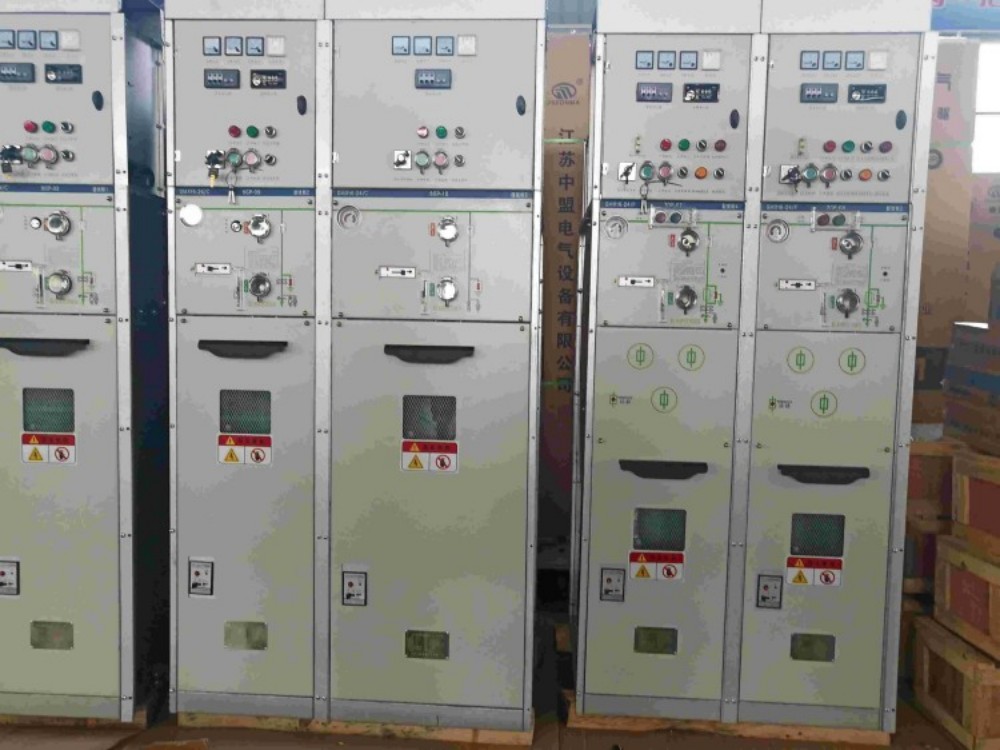

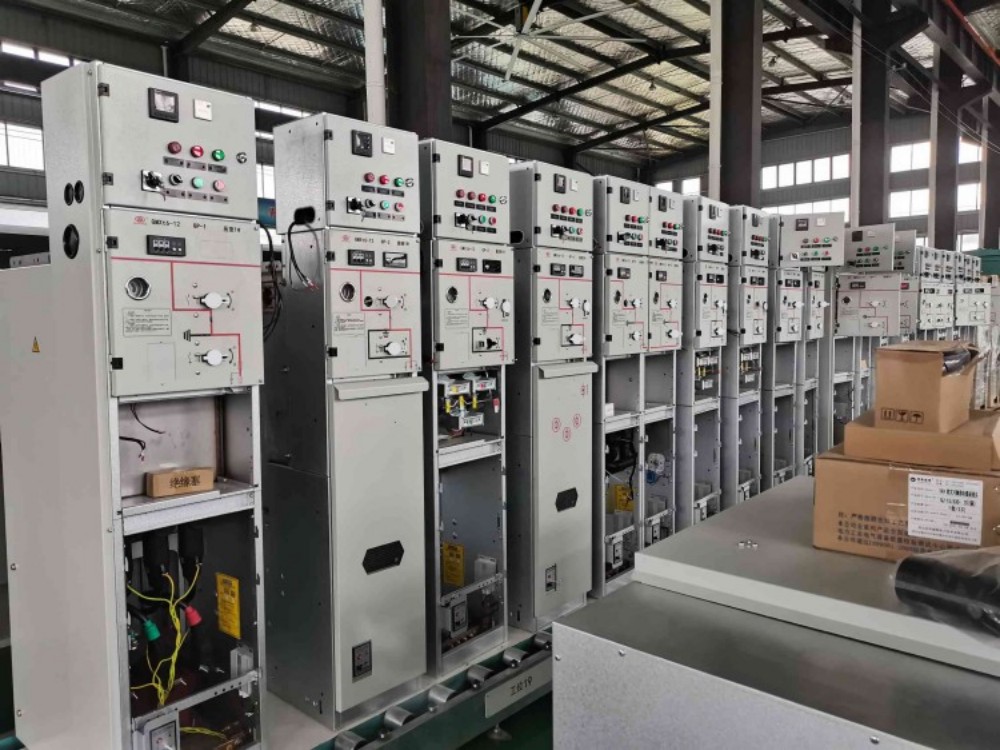

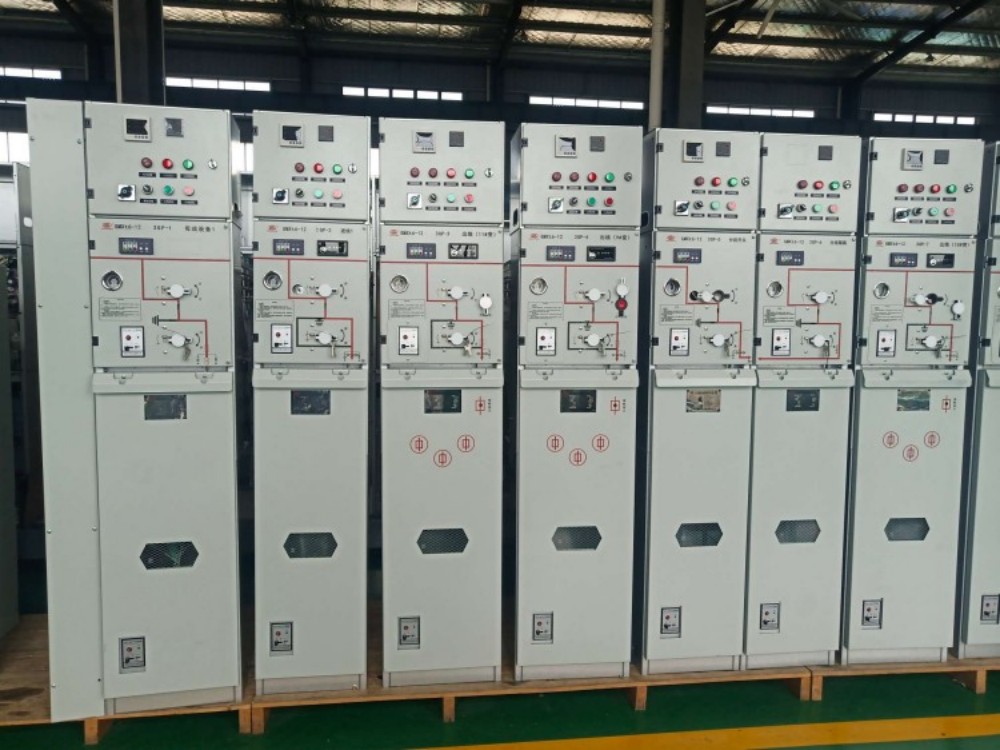

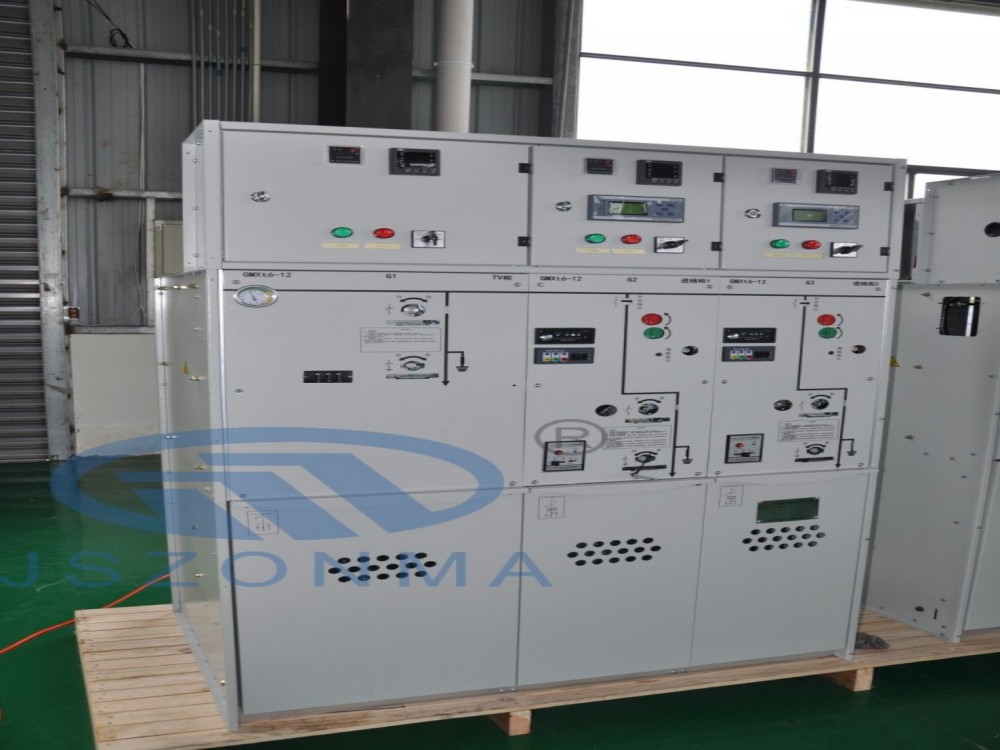

The GMXt6 fully insulated gas filling cabinet is a completely sealed system, with all live parts and switches enclosed in a stainless steel casing. The entire switch device is not affected by external environmental conditions, ensuring operational reliability and personal safety, and achieving maintenance free operation.
By selecting expandable busbars, any combination can be achieved to achieve full modularity. The expansion of busbar safety insulation and shielding ensures high reliability and safety. The GMXt6-12 inflatable switchgear can also provide a TV based automation solution, forming the concept of intelligent switches and reducing on-site installation and debugging workload to a very low level.
The GMXt6-12 fully insulated inflatable cabinet is divided into non expandable standard configuration and expandable standard configuration. Due to its combination of full modules and half modules, as well as its own scalability, it has extremely special flexibility.
GMXt6-12 fully insulated inflatable cabinet complies with GB standards.
The design lifespan for operation under indoor conditions (40 ℃) and outdoor conditions (-50 ℃) exceeds 30 years.
The main characteristics of high-voltage switchgear are:
(1) GMXt6-12 fully insulated inflatable cabinet uses CO2, ammonia, dry air, and SF6 gas as arc extinguishing and insulation media

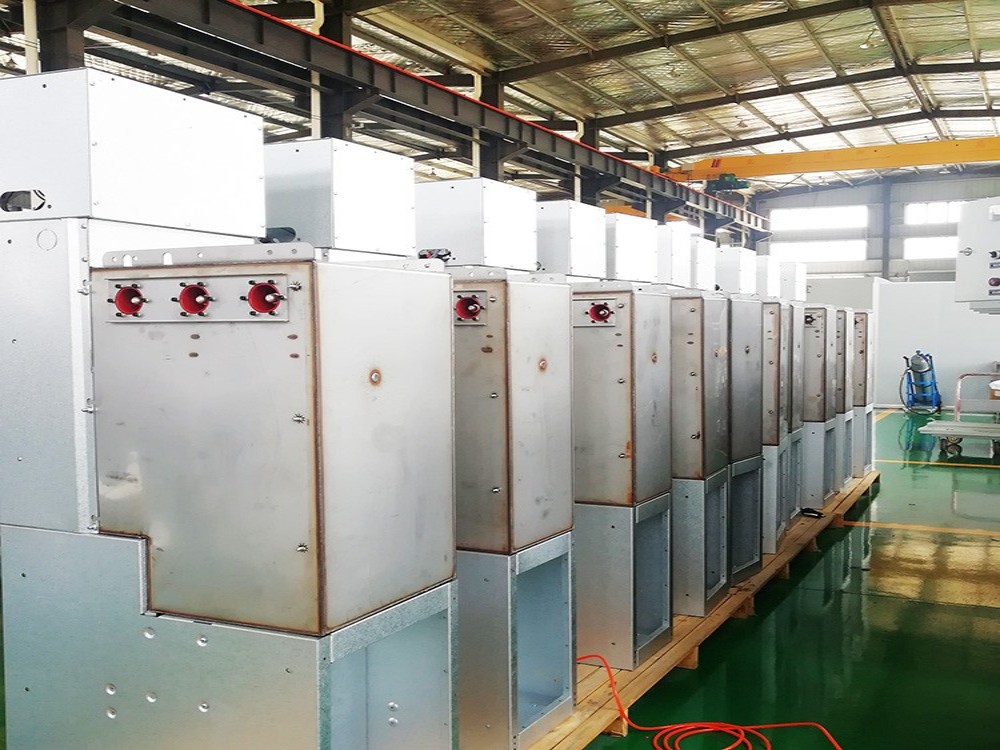

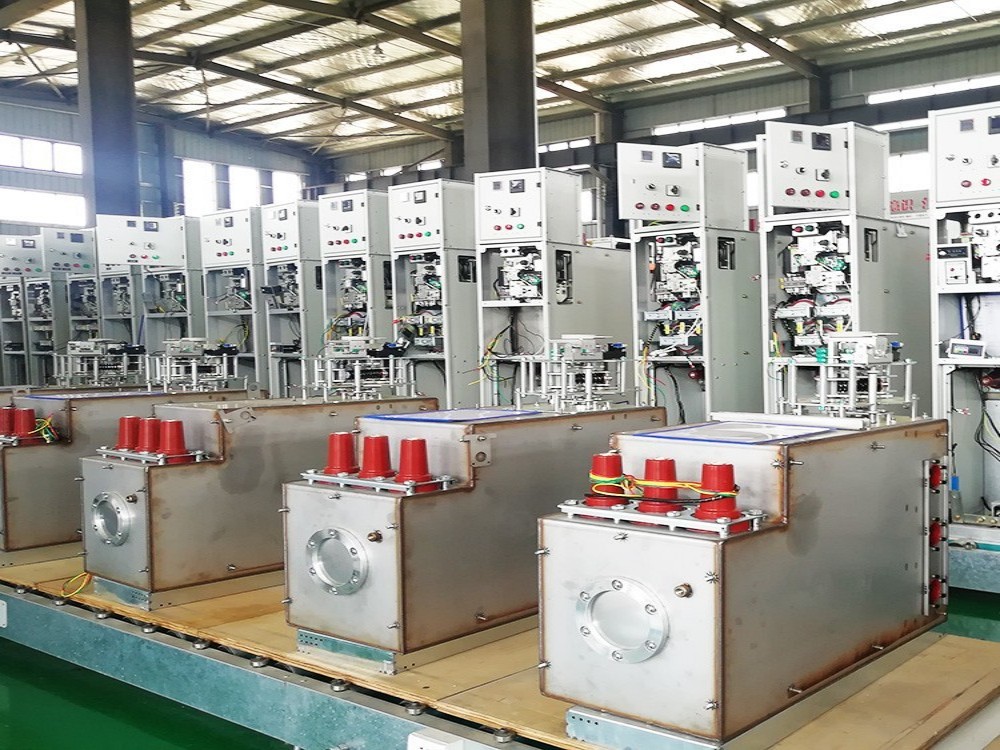

(2) The switchgear is a fully sealed and insulated structure; The busbar, switch, and live parts are completely enclosed in a stainless steel shell, and the chamber is filled with SF6 gas at 1.4 bar, with a protection level of IP67. The entire switch device is completely unaffected by external environmental conditions, and can ensure the normal operation of the switch even in extreme situations such as short-term water immersion. The product is ultimately maintenance free.
(3) The switchgear has a complete "five prevention" interlocking device, which completely eliminates personnel and equipment operation failures that may be caused by human error.
(4) All switch cabinets have reliable safety relief channels, which can ensure the personal safety of operators even in extreme situations.
(5) Switchgear is divided into two types: fixed unit combinations and expandable unit combinations.
(6) Switchgear usually has front incoming and outgoing lines, and can also be installed in different positions to achieve side outgoing lines or side extensions.
(7) The cabinet size is easy to install and can be suitable for places with limited space and poor environmental conditions.
(8) The switchgear can be equipped with electric, remote control, and monitoring devices according to different user needs.
